Disassembly guide for Acer Aspire E1-531

posted in: 1. Acer | 22

Acer Asprire E1-531-2438 disassembly

Today I will be taking apart an Acer Aspire E1-531-2438 laptop.

My goal is to access and replace the cooling fan which failed and started making noise. Cleaning the fan didn’t help.

Most likely this guide will fork for other Aspire E1 series models.

Make sure the laptop is turned off before you start taking it apart.

STEP 1.

Unlock and remove the battery.

Remove battery

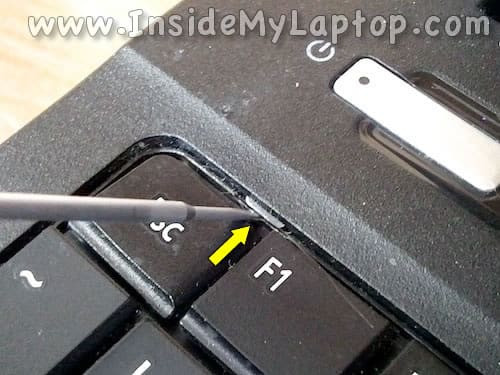

STEP 2.

Using a small flathead screwdriver push on the latch securing the keyboard.

Unlock keyboard

STEP 3.

At the same time insert something under the keyboard and lift it up.

Separate keyboard

STEP 4.

There are six latches securing the keyboard on the top.

After you release all of them, you should be able to lift up the keyboard as it shown on the following picture.

Lift up keyboard

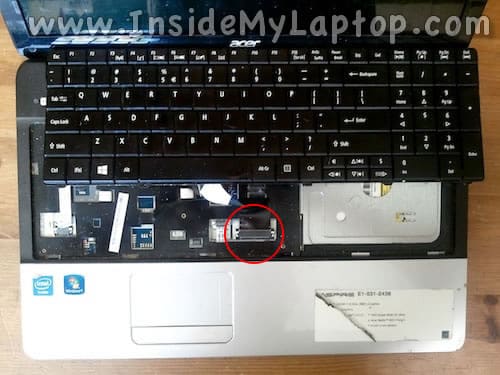

STEP 5.

Now you can access and unlock the cable connector.

Keyboard cable connector

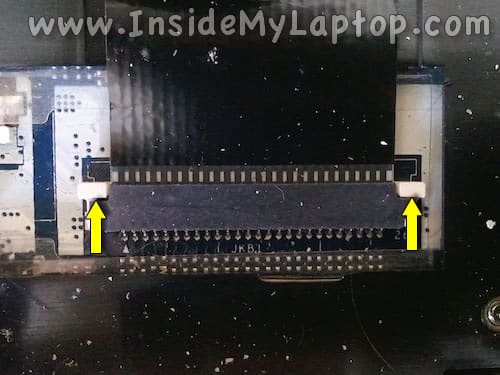

STEP 6.

In order to unlock the connector you’ll have to slide the cable retainer about 2-3 millimeters to the shown direction.

Unlock connector

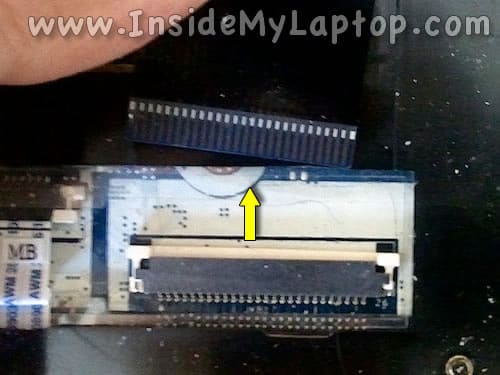

STEP 7.

Now, after the connector is unlocked, you can pull the cable.

Disconnect cable

STEP 8.

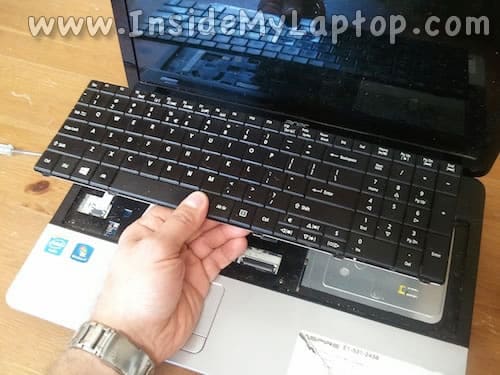

Remove the keyboard.

Remove keyboard

STEP 9.

Remove two screws securing the bottom cover.

Remove the cover.

Under the cover you’ll find the hard drive, both RAM modules and Wi-Fi card.

This laptop can handle up to 8GB (2x4GB) DDR3-12800 SODIMM RAM modules.

Remove two bottom screws

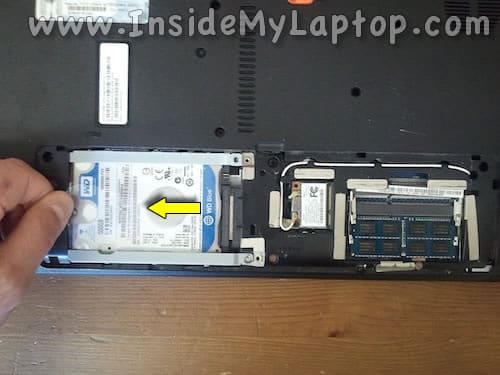

STEP 10.

Pull the hard drive to the left to disconnect it from the motherboard.

Disconnect hard drive

STEP 11.

Remove the hard drive.

Upgrading this regular 2.5″ hard drive to a 2.5″ solid state drive will speed up the laptop significantly.

Remove hard drive

STEP 12.

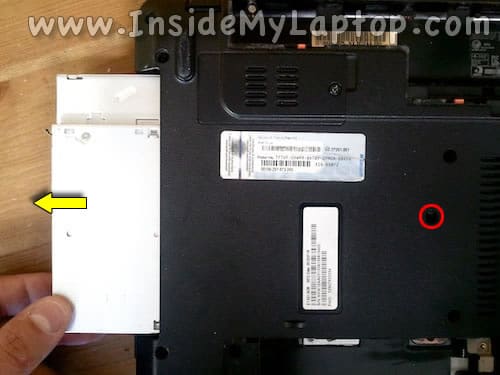

Remove one screw securing the optical drive.

Pull the optical drive to the left and remove it.

Remove optical drive

STEP 13.

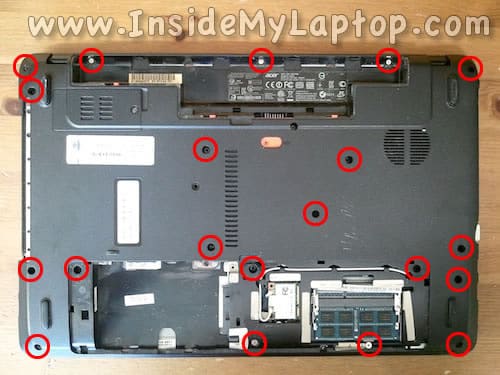

Remove all screws from the bottom of the laptop.

Bottom screws

STEP 14.

Disconnect the power button cable and touchpad cable (same technique as shown in steps 6-7).

Disconnect top cables

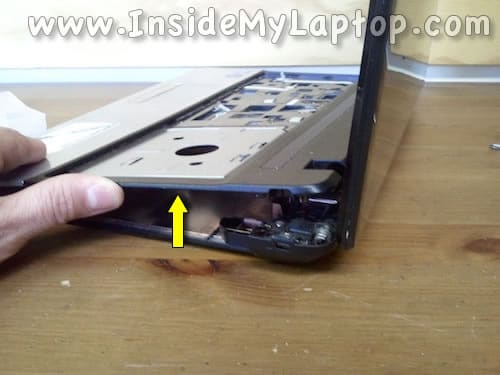

STEP 15.

Lift up the top cover and start separating it from the bottom.

Lift up top cover

STEP 16.

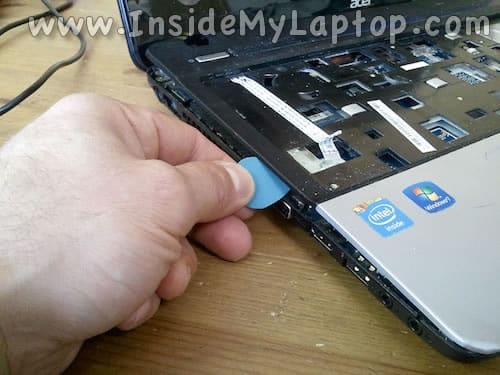

I’m using a guitar pick to split the case.

Continue removing top cover

STEP 17.

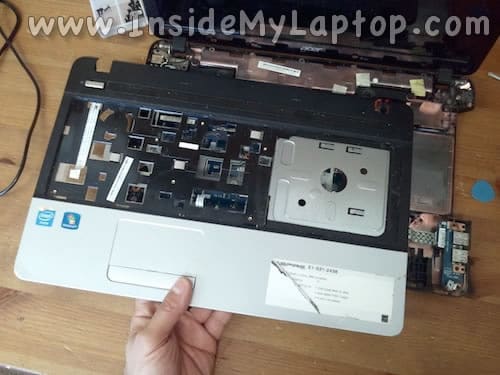

Remove the top cover (palm rest) assembly.

Top cover removed

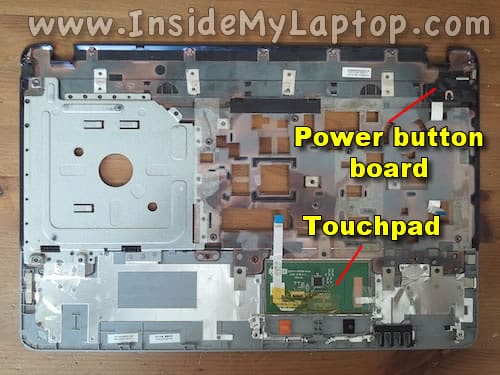

On the other side you can access the touchpad and power button board.

Touchpad and power button

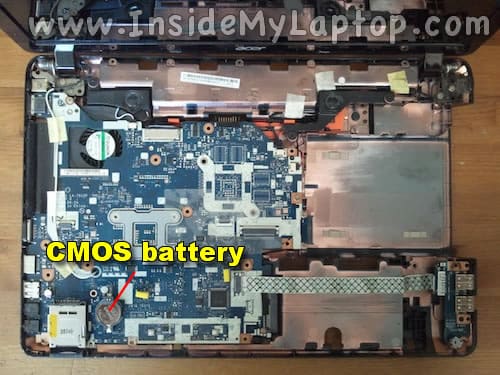

When the top cover removed you can access the CMOS battery.

As you see, the cooling fan mounted under the motherboard. Let’s remove it.

CMOS battery

STEP 18.

Disconnect both antenna cables from the wireless card.

Wi-Fi antenna cables

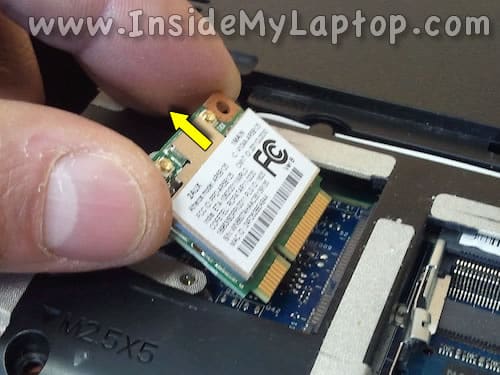

STEP 19.

Remove one screw securing the Wi-Fi card and pull it from the slot.

Remove Wi-Fi card

STEP 20.

Un-route the white antenna cable.

You can leave the black cable in place.

Un-route Wi-Fi cable

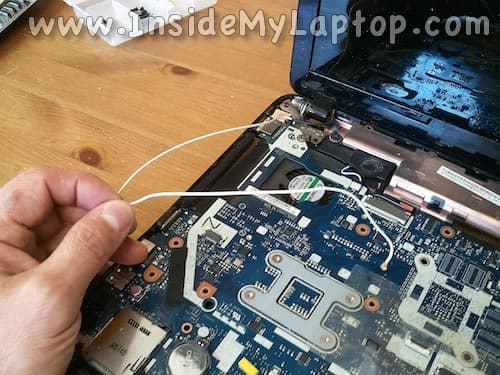

STEP 21.

Pull the white cable though the opening and un-glue it from the motherboard.

Remove cable

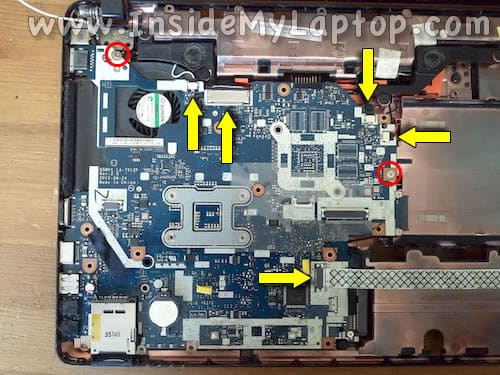

STEP 22.

Remove two screws securing the motherboard.

Disconnect five cables.

Disconnect motherboard

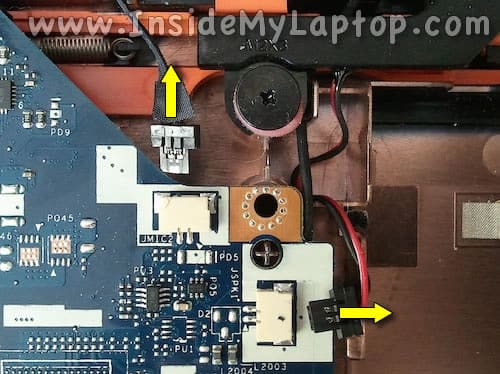

Here’s how to disconnect small connectors.

Simply unplug the male part from the female part. Do not pull by the wires. Unplug by the connector edges.

Unplug cables

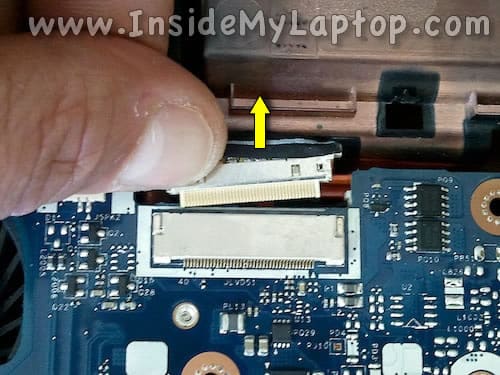

Here’s how to disconnect the display cable.

Disconnect display cable

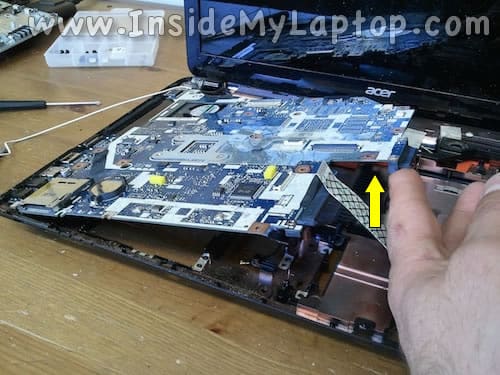

STEP 23.

Start removing the motherboard from the case as it shown on the following picture.

Lift up motherboard

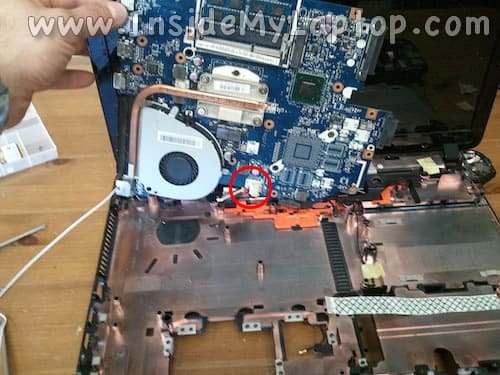

STEP 24.

Be careful. The motherboard is connected to the DC jack cable.

DC jack connector

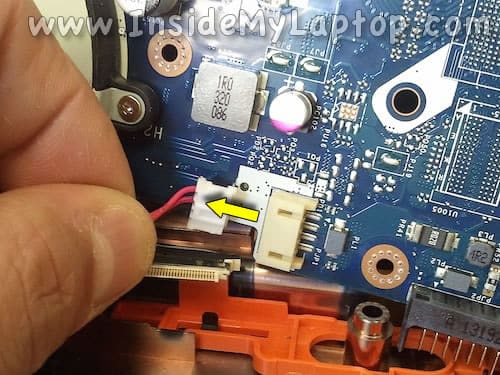

Unplug the DC jack cable.

Disconnect DC jack

STEP 25.

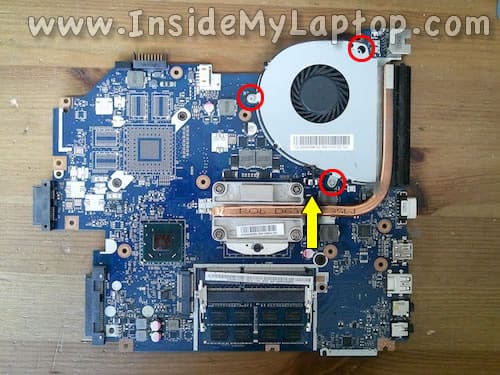

Finally, we can access the cooling fan.

Remove three screws securing the fan and disconnect the cable.

Disconnect fan

STEP 26.

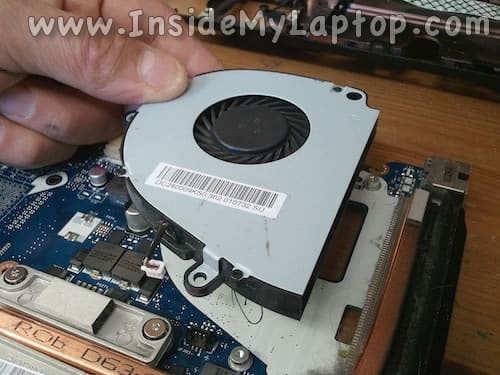

Remove the failed fan and replace it with a new one.

Remove and replace fan
