How to disassemble Dell Inspiron 15 3521/5521

posted in: 4. Dell | 32

Dell Inspiron R15-5521/3512 disassembly

In this guide I explain how to disassemble a Dell Inspiron 15 3521/5521.

I will remove all main components from the laptop and show how to access the cooling fan.

You can use these instructions for replacing failed internal components or cleaning up the heatsink and fan.

Before you start taking it apart make sure the computer is turned off.

As always, I advice to keep track of all removed screws. Make notes. It will help you during the reassembly process.

STEP 1.

Unlock and remove the battery.

Remove laptop battery

STEP 2.

Loosen two screws securing the service cover on the bottom.

Lift up and remove the service cover. You’ll have to apply some reasonable force to remove the service cover.

Loosen screws on service cover

STEP 3.

Now you can access the hard drive, both memory modules and CMOS battery.

This laptop can handle 8GB (2x4GB) DDR3-12800 SODIMM memory modules.

Hard drive and memory access

STEP 4.

Remove two screws securing the hard drive to the case.

Remove screws from hard drive

STEP 5.

Pull the hard drive to the left to disconnect it from the motherboard.

Disconnect hard drive

STEP 6.

Now lift up the hard drive and remove it.

Upgrading this regular 2.5″ SATA hard drive to a 2.5″ SATA solid state drive will improve laptop performance significantly.

Remove hard drive

STEP 7.

You’ll find five latches securing the keyboard on the top.

By the way, in order to remove the keyboard you don’t have to go though the previous steps. Just follow STEP 7-STEP 13.

Keyboard latches

STEP 8.

Those latches are spring loaded.

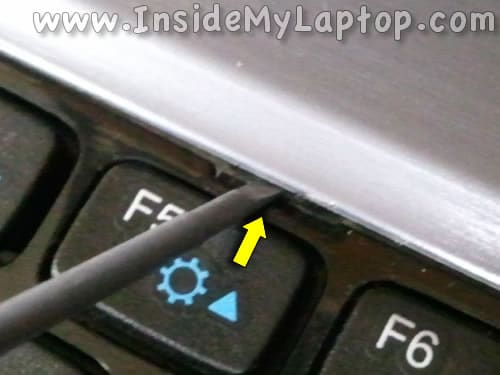

Push on the latch using a small flathead screwdriver. The latch will move inside the case.

Push keyboard latch inside

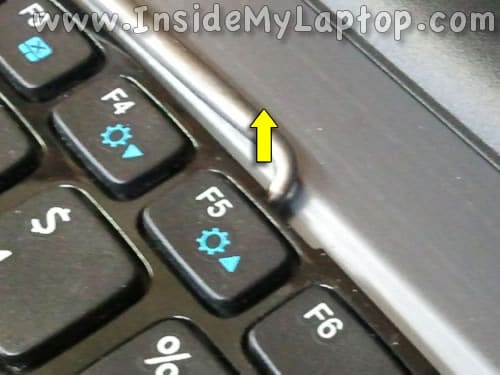

At the same time, while the latch is hidden inside, insert a sharp object under the keyboard and lift it up a little bit.

This will not allow the latch to lock the keyboard.

Do the same with all remaining latches.

Lift up keyboard

STEP 9.

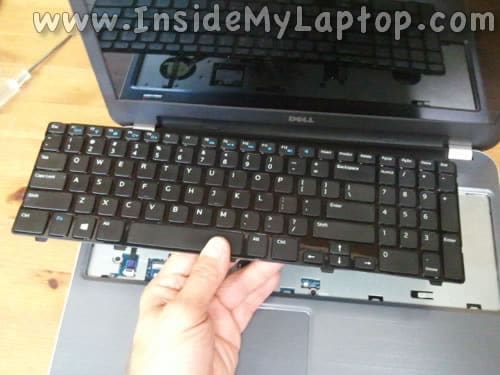

When all five latches unlocked, you should be able to lift up the keyboard and separate it from the top cover assembly.

Besides five latches on the top, there are two plastic retainers on the left and right side of the keyboard.

You’ll have to apply some reasonable force to move the keyboard though those  retainers on both sides.

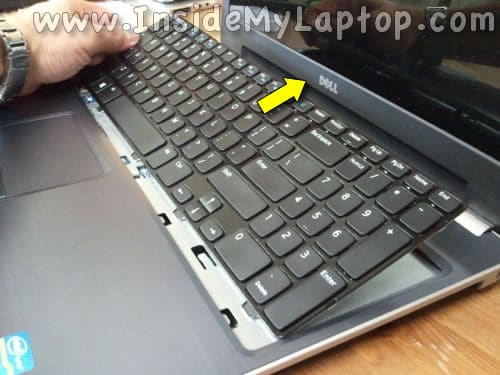

Lift it up and move towards the display assembly.

Slide keyboard towards display assembly

STEP 10.

Turn the keyboard upside down.

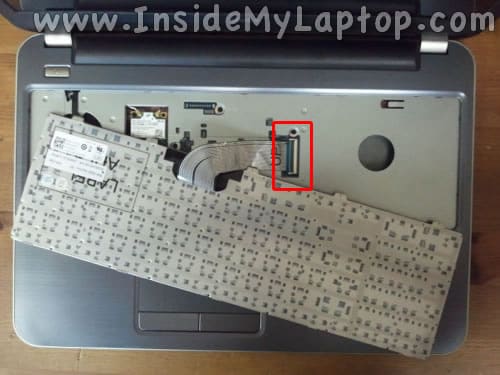

Now you can access the keyboard cable connector on the motherboard.

Before you release the cable you’ll have to unlock the connector.

Keyboard connector

STEP 11.

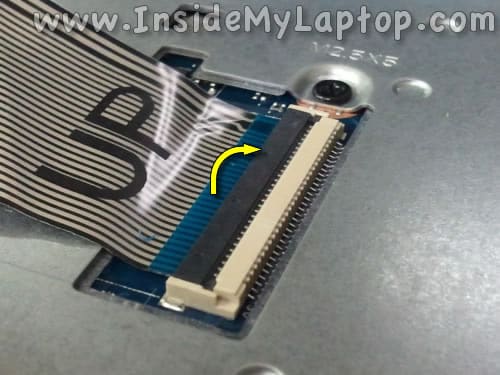

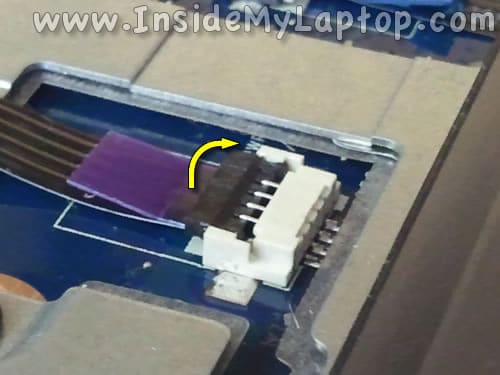

Lift up the left side of the connector retainer with your fingernail.

The retainer will open up at a 90 degree angle.

The retainer (brown) must remain attached to the connector base (white).

Unlock keyboard connector

STEP 12.

On the following picture the connector shown in the unlocked position.

As you see, the retainer is still attached to the base.

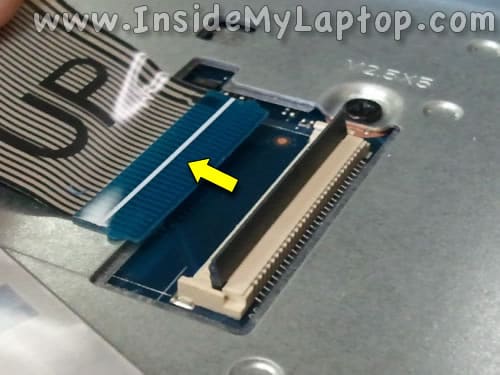

Now you can pull the keyboard cable from the connector.

Unplug keyboard cable

STEP 13.

Lift up and remove the keyboard.

Remove laptop keyboard

STEP 14.

Remove all screws from the bottom.

Remove screws from bottom of laptop

STEP 15.

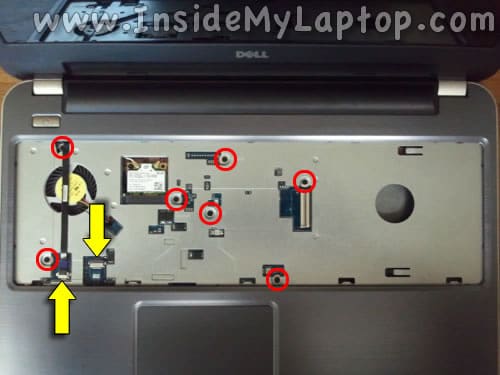

Remove screws securing the top cover (palmrest) assembly.

Disconnect the power button board cable and trackpad cable from the motherboard.

Use same technique as for disconnecting the keyboard cable.

Remove screws securing top cover

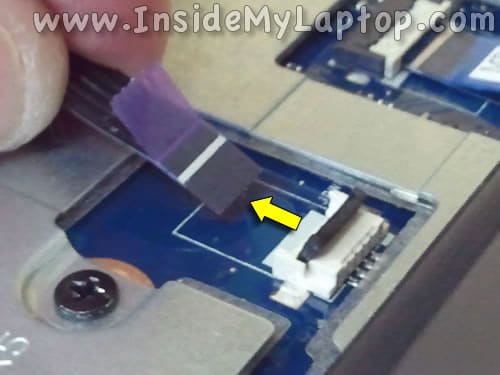

Lift up the cable retainer.

Disconnect power button board cable

Pull the cable from the connector.

Disconnect power button board cable

STEP 16.

Now you can start separating the top cover (palmrest) assembly from the bottom cover.

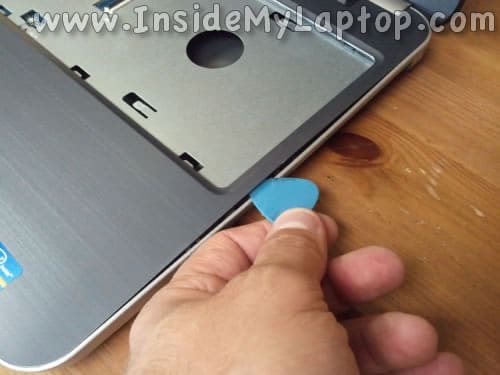

I’m using the guitar pick for that. You can use a piece of plastic.

Separate top cover from bottom cover

STEP 17.

Continue separating the top cover from the bottom cover.

You’ll have to apply some reasonable force to separate these two parts. There are hidden latches securing them.

Continue removing top cover

STEP 18.

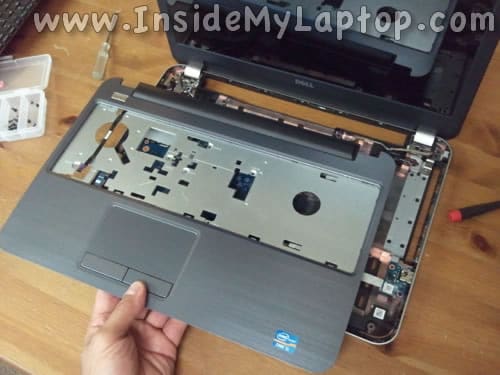

Remove the top cover (palmrest) assembly.

Remove top cover assembly

STEP 19.

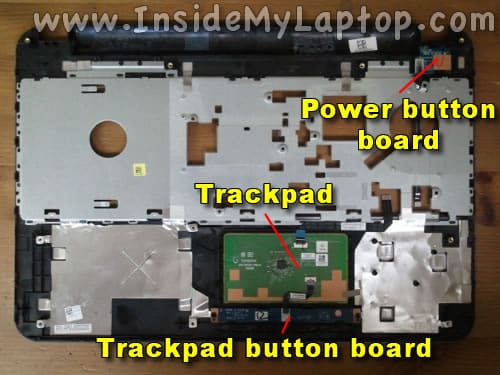

Here’s the bottom side of the top cover (palmrest) assembly.

Here you can access the trackpad, trackpad button board and power button board.

Bottom side of top cover assembly

STEP 20.

Before removing the motherboard it’s necessary to disconnect and remove the wireless card.

Wireless card

STEP 21.

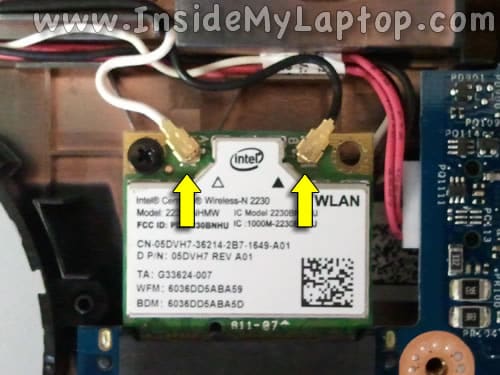

You’ll have to disconnect two antenna cables, remove one screw securing the wireless card and pull the card from the slot.

Wireless card antenna cables

Here’s how to disconnect the antenna cable from the wireless card.

Simply lift up the cable form the card by the gold connector.

Disconnect antenna cable from wireless card

STEP 22.

Remove one screw securing the motherboard.

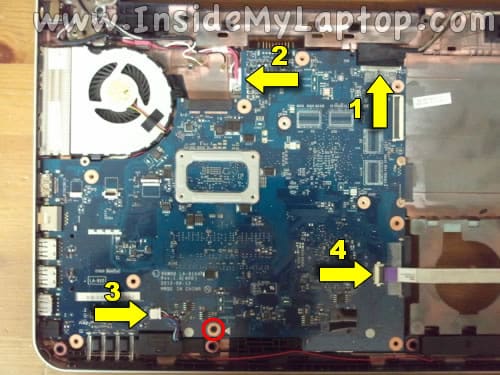

Disconnect the following cables:
1. Video cable.
2. DC jack cable.
3. Speaker cable.
4. I/O board cable.

Disconnect cables from motherboard

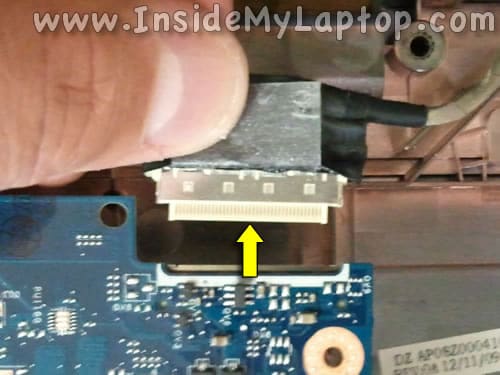

Here’s how to unplug the video cable.

Disconnect video cable

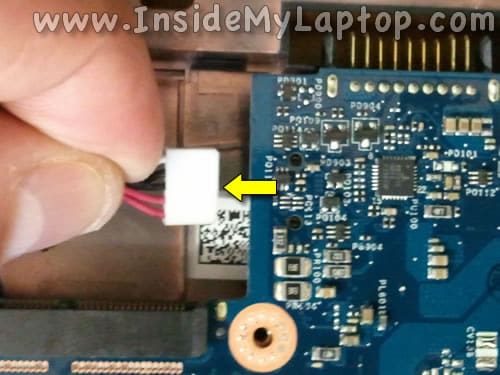

And DC jack cable.

Disconnect DC jack cable

STEP 23.

Start removing the motherboard from the laptop case as it shown on the following picture.

Lift up motherboard

STEP 24.

Remove the motherboard.

Remove motherboard

STEP 25.

You can access the cooling module (heatsink and fan) on the other side of the motherboard.

Other side of motherboard

STEP 26.

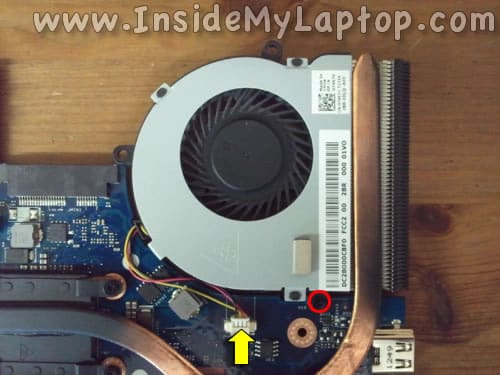

In order to remove and replace the fan you’ll have to disconnect the fan cable and remove one screw.

When the cooling fan removed you can clean up the fan and heatsink.

Disconnect cooling fan

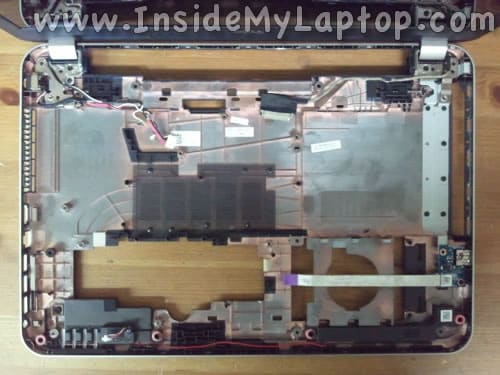

Here’s the bottom cover of the laptop with the motherboard removed.

Bottom case without motherboard

The DC power jack located in the upper left corner of the bottom case.

DC power jack
